The SAL F4 is a three-phase (400 V) continuous mixing pump, ideal for spraying pre-mixed surface coatings containing lime, cement, finishing compounds, fillers, coloured compounds, adhesives, screeds, and any product compatible with mechanical spraying systems.

Dry product separated from the mixing chamber Fitted with four wheels and transport handles

WATER PUMP ONDINA ITALY

Internal chamber
made in stainless
steel.

WATER SYSTEM

Completely made in brass.
Rust proof guaranteed.

MIXING GEAR MOTOR

Brand Nord - Germany.
First class quality.

AIR COMPRESSOR

Handy K2 - Germany.
Best quality in its class.

Technical Specifications

Working pressure	Max. 30 bar
Conveying output	Up to 50 L/min
Conveying distance	Up to 50 m (depends on material and hose diameters)
Motor	Nord-Germany 400 V, 3 Ph, 50 Hz, 5.5 kW, 400 rpm
Hopper content	145 L
Air compressor	Poly-Germany 400 V, 3 Ph, 50 Hz, 0.9 kW, 250 L/min
Water pump	Ondina-Italy 400 V, 3 Ph, 50 Hz, 0.37 kW
Dimensions (L × W × H)	1,200 × 720 × 1,530 mm
Filling height	910 mm
Weight	~297 kg

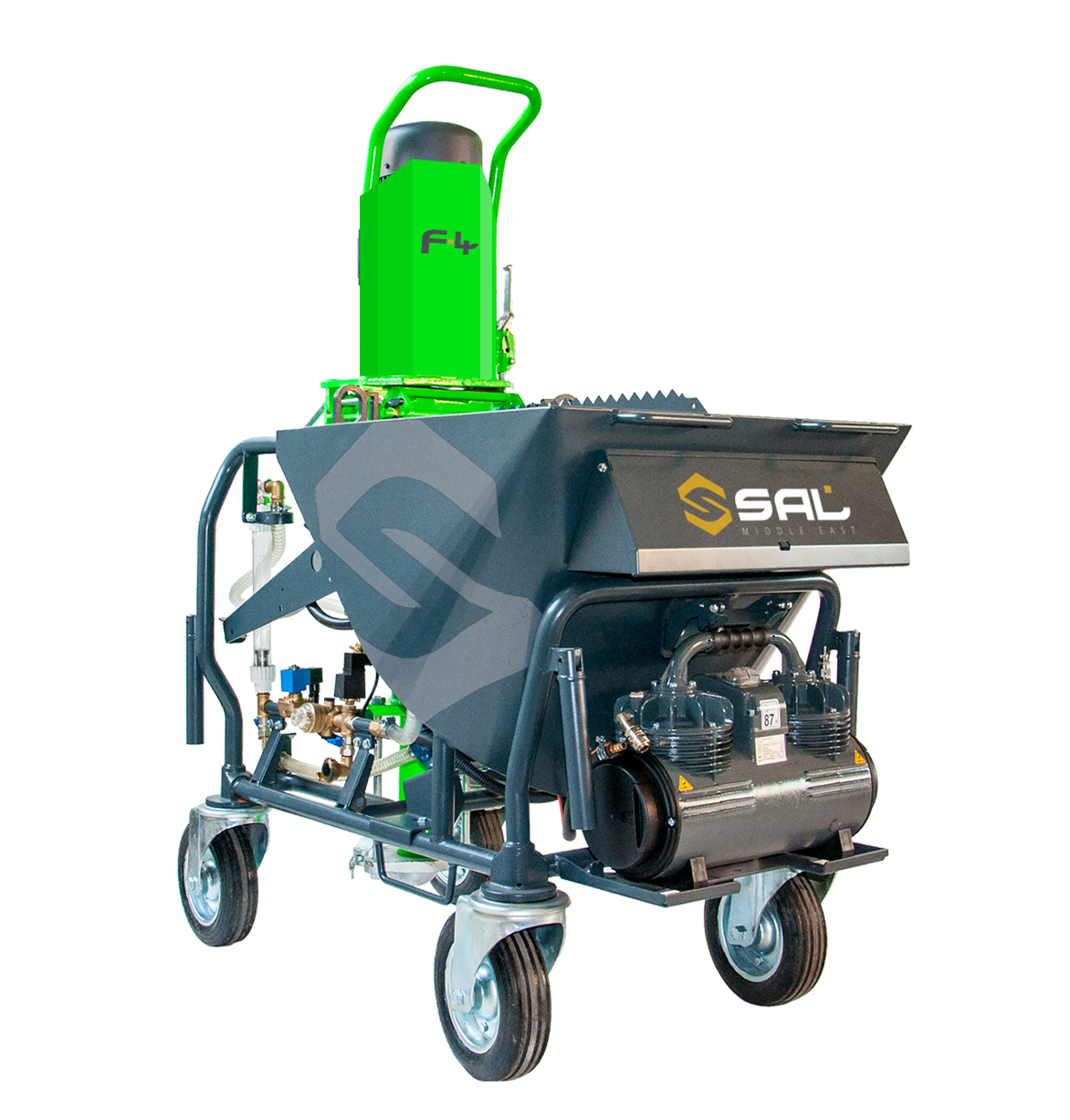

SPRAY PLASTER MACHINE

SAL F4

SPRAY PLASTER MACHINE

SAL F4
